Rulers

This page refers to Labeljoy 5, which is not the latest release!

Please upgrade to Labeljoy 6 to get the latest version of the software with all its amazing features, or go to Labeljoy 6 user guide if you already own it.

rulers

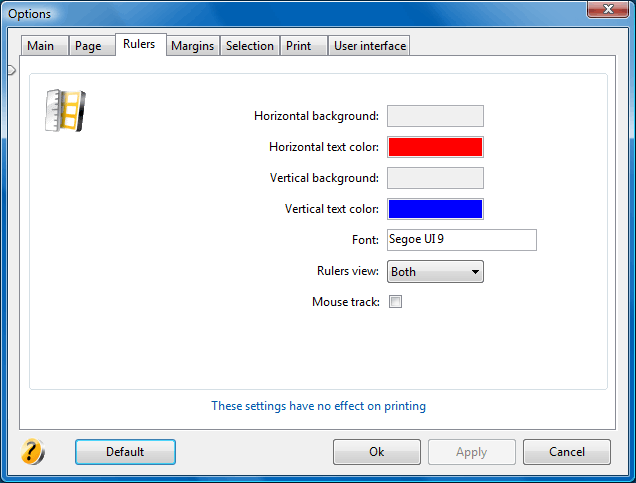

The Rulers tab enables you to set the options that affect the way Labeljoy's horizontal and vertical rulers are displayed on the upper and left side of the screen.

The following options can be set:

Horizontal background: definition of the color used to draw the background for the horizontal ruler.
Horizontal text color: definition of the color used to draw the horizontal ruler numbers.
Vertical background: definition of the color used to draw the background for the vertical ruler.
Vertical text color: definition of the color used to draw the vertical ruler numbers.
Font: definition of the font used to draw the numbers on both rulers. The size of the selected font will affect the size of the rulers as well.
Rulers view: definition of the displaying state of the rulers. You can choose to display both rulers, only one of them, or hide them both.
Mouse track: by activating this option, Labeljoy will display a vertical and a horizontal line crossing right behind the mouse cursor.
