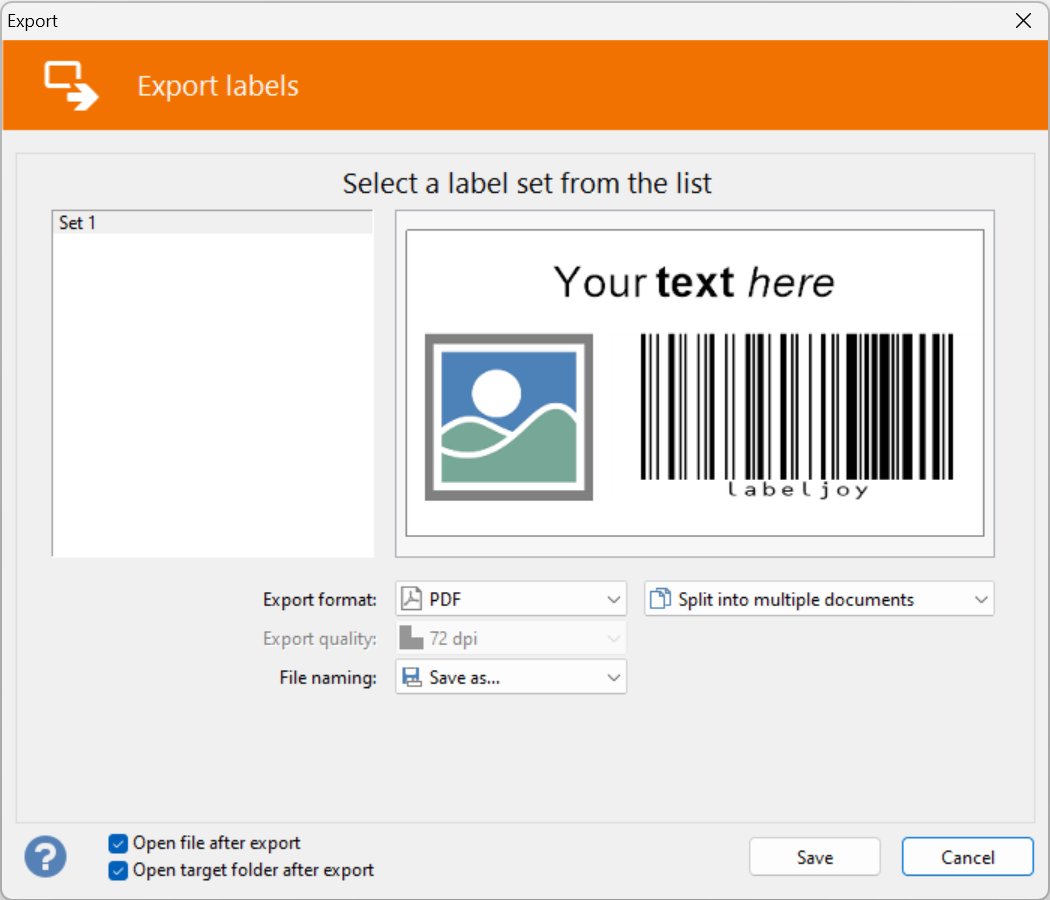

The left pane displays a list of all label sets found in the current job. For the most times, this list will only show a single item with the name of the current label set. The names listed here are the ones found in the Advanced tab of the Label set properties form.

The right pane displays a preview of the label set that will be exported.

In the lower end are two combo boxes that enable you to define the format and the quality of the generated images:

• Export format: select the format to be used to generate the images. Note that the bitmap format is a non-compressed format and will generate files of much larger size compared to all other formats.
• Export quality: select the DPI resolution (Dot Per Inch) to be enforced in the generated images. The higher the selected value, the higher the size of the resulting images and the required processing time.
• File naming: enables you to select a field from the data source (when present) to define the name of each file that is generated during export. This field is active only when Labeljoy detects that automatic naming is possible.

Lastly, at the bottom of the form is the Open target folder after export check box, which, if checked, will automatically open a new Windows Explorer window at the end of the exporting procedure of the folder in which the images were exported.

Note:
If the label being exported contains non-static elements, such as texts containing data fields, or barcodes containing counters, etc, then the export operation will generate multiple files, one for each label.
Also, if a data source is found, a Microsoft Access 2003 (.mdb) file will also be generated, containing the data source and an additional field that will contain the path and the file name of each generated image file.
